RFID Nano

Overview

Purpose of the device

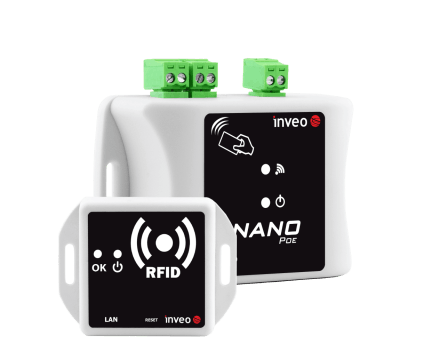

Nano RFID and Nano RFID PoE devices have been designed to read Unique format RIFD tags, enabling for integration with various systems via LAN.

Thanks to Modbus, HTTP client/server and SNMP support, the devices can be used in a wide range of applications. Their compact size allows for easy installation and integration with existing systems.

Nano RFID PoE can additionally be powered with PoE, making installation easy. The implemented LED's and a sound generator inform the user about the device's state and tag readout operations. Thanks to a wide array of configuration options, the device can operate both as a server and a client in a network, adapting to user's needs.

Changelog

1.0 31st of March 2025

• Firmware revision v0.47

Device construction

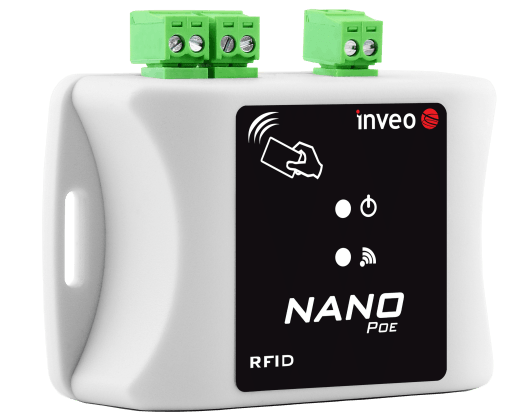

Nano RFID PoE

Technical characteristics

Dimensions

General characteristics

The module is equipped with 2 LED indicators that indicate power supply and tag application.

• POWER indicates correct power supply,
• TAG indicates a correct RFID tag read.

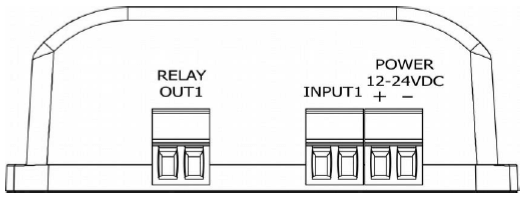

Module connectors description

• POWER – Additional power connector when PoE is unavailable. Power supply voltage: 12-24V DC,
• INPUT1 – NO input. Input state is available via Modbus TCP or HTTP Get,
• RELAY OUT1 – NO relay output. Output control and state preview are available via Modbus TCP or HTTP GET.

• LAN – LAN and PoE IEEE 802.3af,
• RESET – Button used to enable DHCP and restore the module to factory settings.

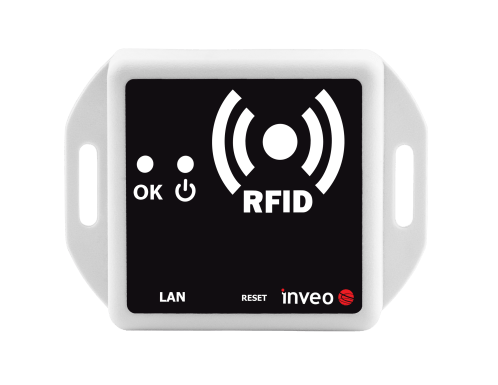

Nano RFID

Technical characteristics

Dimensions

General characteristics

The module is equipped with 2 LED indicators that indicate power supply and tag application.

• POWER indicates correct power supply,
• OK indicates a correct RFID tag read.

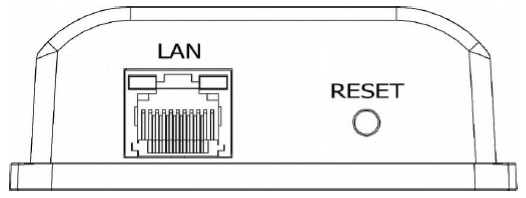

Module connectors description

• LAN – LAN and Passive PoE,
• RESET – Button used to enable DHCP and restore the module to factory settings.

Network configuration

Changing the device's IP address - Discoverer programme

After running the Discoverer programme and searching for the appropriate device:

1. Right-click the device,
2. Click the Change button.

After the dialogue window is opened you can:

• Set the IP address, mask, gateway, DNS1/DNS2.
• Change the Host name.

If Remote Config is disabled (enabled by default), the device needs to be configured by changing the computer's subnet:

To enable remote configuration:

1. Go to the Administration tab,
2. Select Enable Remote Config.

Changing the computer's subnet address for configuration

During configuration without Discoverer programme, it's needed to change the subnet address of the computer on the same network.

To access the computer's network configuration, do one of the following:

• Press Win + R, type in ncpa.cpl, and then press Enter.
• Alternatively, go to:
  Start → Control Panel → Network and Internet → Network and sharing center → Change adapter settings.

Then:

1. Select the network connection.
2. Right-click it and select Properties.
3. After selecting this option, network connection configuration screen will appear.

Select Internet protocol version 4 (TCP/IPv4) and type in the following parameters:

Network settings configuration

The network Network tab allows the user to change LAN settings.

• Host Name – NetBios name,
• DHCP – Enable the DHCP client; selecting this option forces the use of DHCP assigned IP address,
• IP Address – Module IP address,
• Gateway – Network gateway,
• Subnet Mask – IP subnet mask,
• DNS1, DNS2 – DNS addresses,
• Destination IP – IP address of the module, the input state should be routed to when using M2M communication,
• Destination Port – Port, on which the remote device is listening.

Security and services configuration

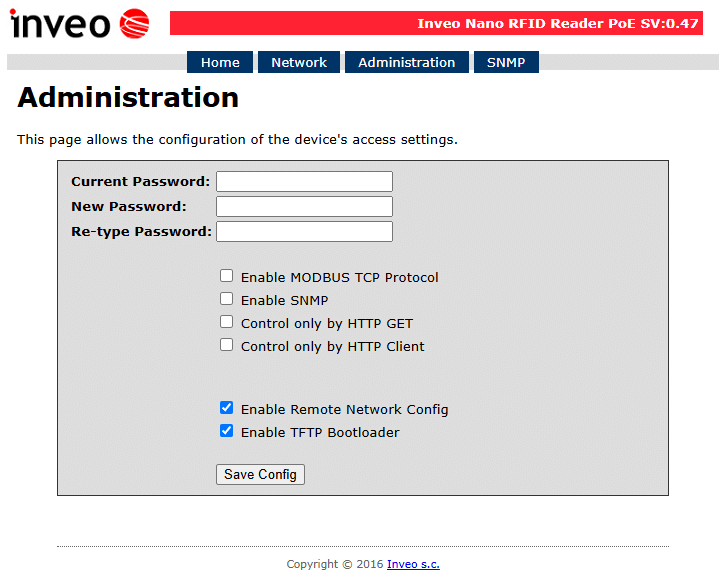

In Administration, active device services and access password can be selected and/or changed.

Changing the password:

To change the password, input the Current Password. Next, type in the new password into the New Password and Re-type Password fields. Apply the changes with Save Config. If you want to remove the password altogether, leave New Password empty.

Services settings:

The device allows selection of services that should be available. To activate the service, select the field next to its name.

• Enable Program Access – Enable access by external programs (Windows, Linux) and TCP/IP on port 9761,
• Enable Modbus TCP Protocol
• Enable SNMP
• Enable Destination Client – Forwarding of the input/output states to other modules,
• Enable MQTT Inveo – Activate MQTT protocol,
• Enable Remote Network Config – (Discoverer programme),
• Enable TFTP Bootloader.

Communication with a module from an external network

If the module is located in a different LAN, port forwarding is required. Depending on the communication method utilized, contact with the network administrator and forwarding of certain ports is needed.

WWW webpage and HTTP protocol:

• TCP port 80

Computer programme or own application:

• TCP port 9761

Modbus TCP:

• TCP port 502

SNMP protocol:

• UDP port 161

Checking the IP address

To check the current device IP address (Nano PoE only):

1. Press and hold the RESET button. The screen will display the four groups of an IP address in sequence: eg. 192 168 111 15..
2. After the full address is displayed, release the RESET button.

DHCP

To enable or disable DHCP support:

1. Press and hold the RESET button for a time between 5 ab 10 seconds.
2. The LED will start blinking about 2 times a second
3. Release the RESET button.

DHCP can also be enabled or disabled in the network settings. Access the Network tab or use the Discoverer programme.

Device functions

Communication protocols

The module offers various methods of access to read RFID tags:

• Access via the built-in webpage: Allows browsing of read data, available from a standard Internet browser, such as Mozilla Firefox, Opera or Chrome,
• HTTP in server mode: The module can operate as a HTTP server, allowing for direct download of RFID data by client applications that send requests to the device,
• HTTP in client mode: In this mode, the module automatically sends the read RFID data to an external server utilizing HTTP,
• Modbus TCP: Thanks to Modbus TCP support, the module can be integrated with industrial automation systems,
• SNMP: The module also supports the SNMP protocol, allowing for monitoring and network device management.

Built-in www page

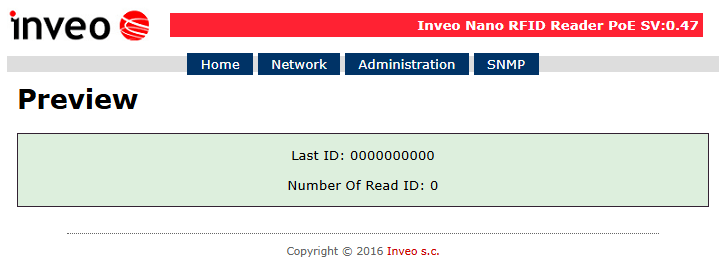

After selecting the HOME tab, the following information is displayed:

• Last ID – Last read RFID tag in HEX,
• Number Of Read ID – Number of read tags since last device reset.

Integration with own software

Nano RFID modules are flexible and can be integrated with proprietary software. The module can operate in one of two modes: as a server or as a client. Mode selection is available in the Administration tab.

HTTP Server mode

In the server mode, a remote host (client) connects with the module and manages it via HTTP GET method.
The client must regularly download the status.xml file from the module.
After it's read, and appropriate XML tags are decoded (described thoroughly in the Read module status via HTTP GET), the client can return commands to the module.
status.xml contains all required data, such as the module's MAC address, input/output state or ID of a card that can be saved to a database. After processing the data, the client can send instructions to the module, shuch as: generate a sound signal, flash LED's, release the door bolt (only Nano RFID PoE). It's important to remember that after every tag read, the module will block the subsequent readouts until the client recalls the releaseId=1 function.

HTTP Client mode

In client mode, the module operates similarly to a web browser. It sends a request to a server and awaits a reply. After a tag is read, the module automatically connects with the server and sends data using HTTP GET. In response, the server can return an XML file with commands that define actions that the module will undertake, such as set LED state or generate a sound.

The benefit of this mode is that the module sends the RFID code to the server or control application by itself, enabling quick and automatic reaction to read data.

The client-server mode offers quick integration with various servers, such as PHP, Node.js or MySQL databases.

Read module status via HTTP GET

Nano RFID modules can be controlled via HTTP. To read the current module status, recall the status.xml resource eg. http://192.168.111.15/status.xml`

The module will display all important information in the form of an XML file:

<status>
    <netbios>NANO RFID</netbios>
    <mac>000000000000</mac>
    <id>0000000000</id>
    <newId>0</newId>
    <cnt>0</cnt>
    <resetFlag>1</resetFlag>
    <enable>1</enable>
    <httpClientStatus>0</httpClientStatus>
    <out>0</out>
    <in>0</in>
    <model>RFID NANO-PoE</model>
    <fw>0.47</fw>
    <hw>1.0</hw>
</status>

HTTP GET – control

Controlling the module in Enable HTTP GET mode involves sending appropriate commands to the reader using HTTP.

http://IP_address/status.xml?

* Only Nano RFID PoE

HTTP Client

Module control in HTTP Client mode is possible after selecting Enable HTTP Client in Administration. If the reader has Enable HTTP Client mode activated, configure the address the data will be sent to. To do that, use the Network → HTTP Client Configuration table.

1. HTTP Srv Addr – IP address the reader will send data to,
2. HTTP Srv Port – Port, the server is listening on,
3. HTTP Resource – Resource the reader recalls, eg. /somefile.php.

Module operation

After an RFID tag is read, the module automatically sends data to the configured server. The data has the following format: http://[server_address]/[resource]?mac=[mac_address]&id=[card_id]

Example:
http://192.168.111.99/rfid.php?mac=123456789012&id=1314151617

Additionally, after the input state changes, the module sends appropriate data to the server:
mac=123456789012&in=0 or mac=123456789012&in=1, depending on the input state.

The data can be saved to a server, eg. to a MySQL database or a file to track RFID tag readuts, reader MAC addresses and read times.

Server response

The server can respond with an XML file containing instructions for the module. Available commands:

Example XML file that sounds the accept sound and activates the LED:

<buzz>10,0,1</buzz>
<led>10,0,1</led>

The XML file syntax is not checked. Only information between the known tags is browsed.

Php server support example:

<?php
if($_GET["id"])
{ // module send id and MAC - $_GET["mac"]
    $user_allowed = 1; // it could be returned from DB
    if($user_allowed==1) {
        echo "<buzz>10,0,1</buzz>";
        echo "<led>10,0,1</led>";
        echo "<out>T40</out>";
    }
else {
        echo "<buzz>5,5,4</buzz>"; // different signal
        echo "<led>5,5,4</led>";
    }
}
?>

This code responds to the module based on the data about the RFID tag, generating various light and sound signals depending on user permissions.

HTTP Client configuration testing pocedure

Described below is a simplified insturction manual for testing correctness of network settings for HTTP Client mode in Inveo devices, using the Discoverer programme.

Step 1: Network settings configuration

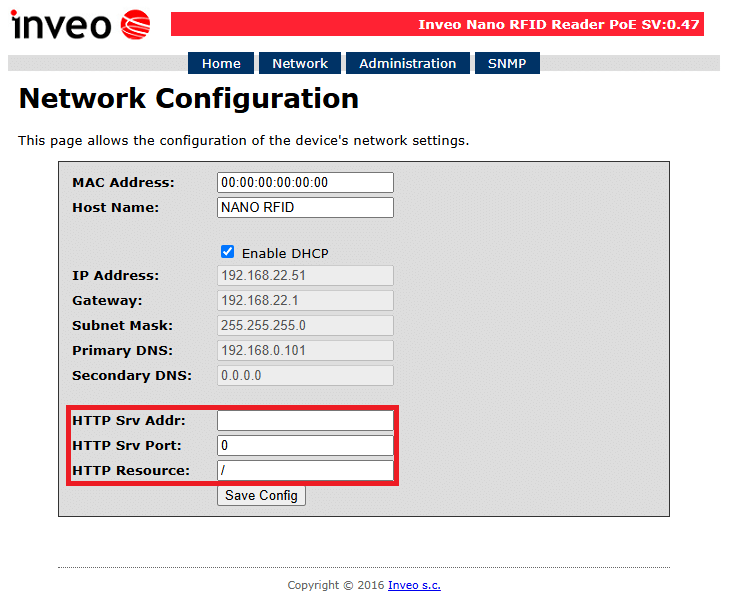

1. Open the Network tab in the device and fill the following fields:

• HTTP Srv Addr – IP address the reader will send data to. If testing with the Discoverer programme, input the IP address of the PC.
• HTTP Srv Port – Port, the server is listening on.

• HTTP Resource – Resource the reader recalls, eg. /somefile.php. If testing with the Discoverer programme, the value of this field can be random or empty.

• Confirm the settings by clicking Save Config.

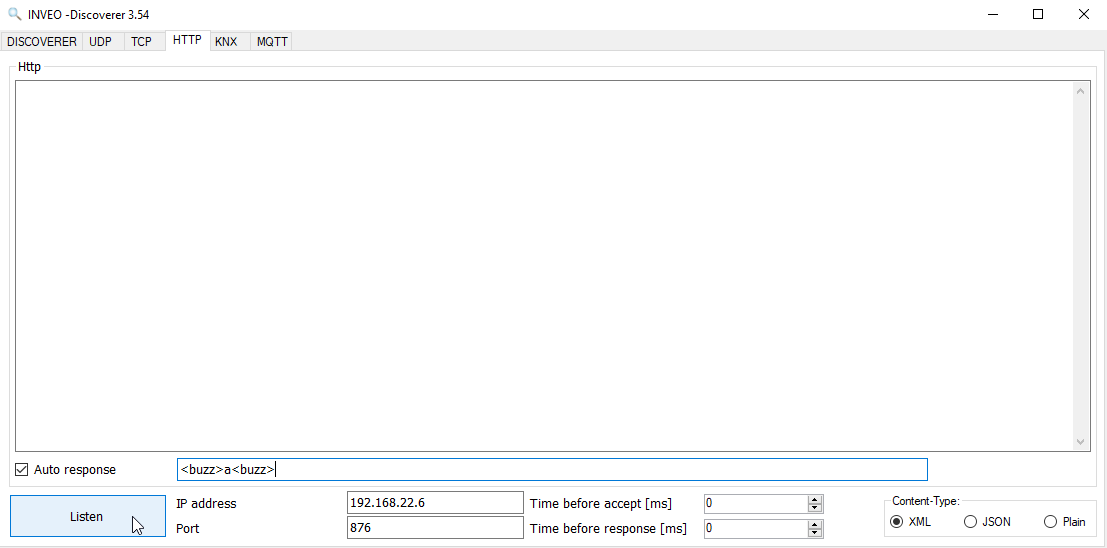

Step 2: Discoverer configuration

1. In the HTTP section of the Discoverer programme, input the PC's IP address and port, corresponding to the device settings.
2. For the device to react for card application with a sound signal, click Auto response and enter the command: <buzz>a</buzz>.
3. Click the Listen button to begin listening for traffic.

Step 3: Testing

1. Apply a card to the reader. If configuration is correct, the device will emit a sound and appropriate information will appear in the HTTP log.

Example log may look like this:

-----Incoming data-----
GET /verifyCardAccess?mac=000000000000&id=5400EF98C7 HTTP/1.1
Host: 192.168.22.3

-----Response-----
HTTP/1.1 200 OK
Content-Length: 0
Content-Type: application/xml

Modbus TCP

The device supports the following Modbus RTU functions:

• 0x01 Read Coils
• 0x03 Read Holding Register
• 0x05 Write Single Coil
• 0x06 Write Single Register
• 0x0F Write Multiple Coils
• 0x10 Write Multiple Registers

Holding Registers addressing

Coils adddressing

After a tag has been read correctly, the Single Coil register 1004 will be written with 1 – a new tag has been read. Holding Registers (1000-1004) contain the subsequent digits of its code.

SNMP

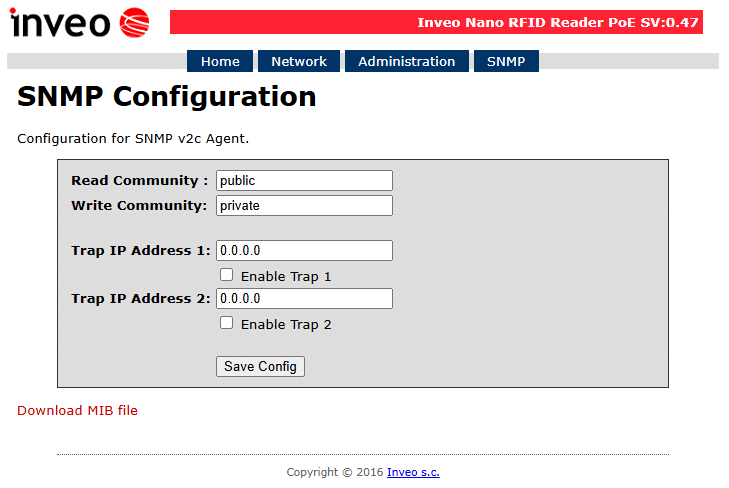

The module is equipped with an SNMP v2c server. To enable this function, go to Administration and Enable SNMP.

SNMP allows for downloading the read RFID tag's ID.

MIB file describing the SNMP structure can be downloaded from the SNMP tab by clicking Download MIB file.

Sending TRAP requests

The module has the ability to send a TRAP request after every successful RFID tag read. To configure their destination, type in the recipients IP address into the Trap IP Address x fields, where x indicates the field number (1 and 2).

Factory settings

Restoring factory settings

To restore the factory settings:

• Power up the device,
• Press the RESET button for a time period between 10 and 15 seconds,
• The TAG LED will start flashing about 4 times a second (Nano, Nano RFID PoE), rSt will appear on the display (Nano In/Out/Temp PoE),
• Release the RESET button.

Once the above steps have been completed, the device will be set to the following parameters:

• IP address: 192.168.111.15
• IP mask: 255.255.255.0
• User: admin
• Password: admin00

Warranty and manufacturer's liability

The manufacturer undertakes to respect the warranty agreement, if the following conditions are met:

• All repairs, changes, expansions and device calibrations are carried out by the manufacturer or an authorized service center,
• The power supply system meets the applicable standards,
• The device is operated in accordance with the suggestions presented in this manual,
• The device is operated in accordance with its intended purpose.

The manufacturer assumes no responsibility for consequences resulting from improper installation, improper use of the device, failure to comply with the instruction manual, and repairs made by unauthorized personnel.

Storage, operation and transport conditions

The device should be stored in enclosed rooms, where the atmosphere is free from vapours and corrosive substances:

• Environment temperature from -30°C to +60°C (-22°F - 140°F),
• Humidity from 25% to 90% (condensation unacceptable),
• Atmospheric pressure from 700 to 1060 hPa.

The device is intended to operate in the following conditions:

• Environment temperature from -10°C do +55°C (14°F - 131°F),
• Humidity from 30% to 75%,
• Atmospheric pressure from 700 to 1060 hPa.

Recommended transport conditions:

• Environment temperature from -40°C do +85°C (-40°F - 185°F),
• Humidity from 5% to 95%,
• Atmospheric pressure from 700 to 1060 hPa.

Installation and device operation:

• The module should be operated in accordance with recommendations provided later in this manual.

Disposal and decommissioning

In an event the device needs to be decommissioned (eg. after its intended life period is surpassed), it is recommended to contact the manufacturer or his representative, who are responsible to respond appropriately, i.e., to collect the device from the user. The user can alternatively contact companies specializing in electronic device or computer equipment disposal and/or decommissioning. Under no condition should the device be placed with other waste.
